FOX SLS Light steel spring
FOX SLS Light steel spring

FOX SLS Light steel spring

FX-803-04-177

Regular price$175.99
/
Shipping calculated at checkout.

  • Free shipping on orders over 150$ *
  • Low stock - 1 item left
  • Inventory on the way

Click HERE for the spring compatibility chart

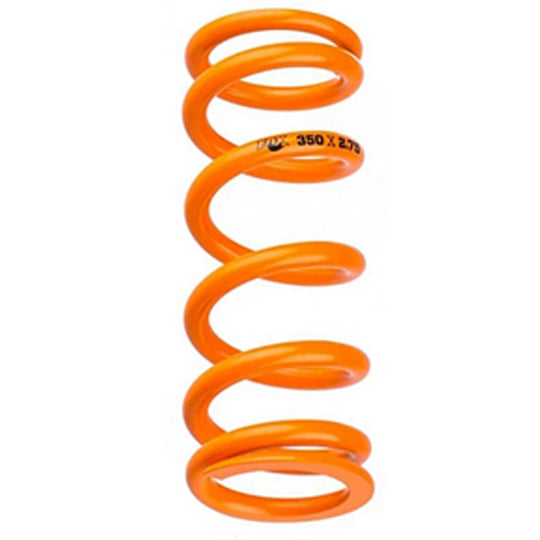

SLS (Super Light Steel) springs are now available from FOX for DHX and VAN rear shocks. These SLS springs are a lighter weight steel spring option offered in addition to our standard steel springs. The new SLS springs from FOX are lighter than titanium springs at more affordable prices. A proprietary surface treatment and stress relief process removes residual stresses from the spring, allowing them to withstand higher stresses. Each spring is optimized by using a smaller wire diameter and fewer coils, creating a lighter spring.

All SLS springs are orange and are marked with their spring rate in lbs/in (in 25 lb increments) and the maximum travel of the shock that they are designed to be paired with.

Old / New code

2019 SLS Springs
  Part Description Where Used
2.4in/61mm Travel Springs
Order this PN   Description
 803-04-177 033-22-000 Spring: 2019 [1.385in ID X 300lb/in X 2.4in/61mm Travel X 4.28in TLG] SLS

7.875inx2.25in, 185mm(T)x50mm, 185mm(T)x52.5mm, 185mm(T)x55mm, 210mmx50mm, 210mmx52.5mm, 210mmx55mm, 230mmx57.5mm

 803-04-178 033-22-001 Spring: 2019 [1.385in ID X 325lb/in X 2.4in/61mm Travel X 4.41in TLG] SLS
 803-04-179 033-22-002 Spring: 2019 [1.385in ID X 350lb/in X 2.4in/61mm Travel X 4.38in TLG] SLS
 803-04-186 033-22-003 Spring: 2019 [1.385in ID X 375lb/in X 2.4in/61mm Travel X 4.52in TLG] SLS
 803-04-187 033-22-004 Spring: 2019 [1.385in ID X 400lb/in X 2.4in/61mm Travel X 4.6in TLG] SLS
 803-04-188 033-22-005 Spring: 2019 [1.385in ID X 425lb/in X 2.4in/61mm Travel X 4.54in TLG] SLS
 803-04-189 033-22-006 Spring: 2019 [1.385in ID X 450lb/in X 2.4in/61mm Travel X 4.74in TLG] SLS
 803-04-190 033-22-007 Spring: 2019 [1.385in ID X 475lb/in X 2.4in/61mm Travel X 4.68in TLG] SLS
 803-04-191 033-22-008 Spring: 2019 [1.385in ID X 500lb/in X 2.4in/61mm Travel X 4.67in TLG] SLS
 803-04-192 033-22-009 Spring: 2019 [1.385in ID X 550lb/in X 2.4in/61mm Travel X 4.91in TLG] SLS
 803-04-193 033-22-010 Spring: 2019 [1.385in ID X 600lb/in X 2.4in/61mm Travel X 4.97in TLG] SLS
 803-04-184 033-22-011 Spring: 2019 [1.385in ID X 650lb/in X 2.4in/61mm Travel X 4.97in TLG] SLS
 803-04-185 033-22-012 Spring: 2019 [1.385in ID X 700lb/in X 2.4in/61mm Travel X 4.97in TLG] SLS
2.65in/67mm Travel Springs
 803-04-194 033-22-013 Spring: 2019 [1.385in ID X 250lb/in X 2.65in/67mm Travel X 4.69in TLG] SLS 8.50inx2.50in, 205mm(T)x60mm, 205mm(T)x62.5mm, 205mm(T)x65mm, 230mmx60mm, 230mmx62.5mm, 230mmx65mm
 803-04-195 033-22-014 Spring: 2019 [1.385in ID X 275lb/in X 2.65in/67mm Travel X 4.63in TLG] SLS
 803-04-196 033-22-015 Spring: 2019 [1.385in ID X 300lb/in X 2.65in/67mm Travel X 4.74in TLG] SLS
 803-04-197 033-22-016 Spring: 2019 [1.385in ID X 325lb/in X 2.65in/67mm Travel X 4.71in TLG] SLS
 803-04-198 033-22-017 Spring: 2019 [1.385in ID X 350lb/in X 2.65in/67mm Travel X 4.85in TLG] SLS
 803-04-199 033-22-018 Spring: 2019 [1.385in ID X 375lb/in X 2.65in/67mm Travel X 4.97in TLG] SLS
 803-04-200 033-22-019 Spring: 2019 [1.385in ID X 400lb/in X 2.65in/67mm Travel X 5.14in TLG] SLS
 803-04-201 033-22-020 Spring: 2019 [1.385in ID X 425lb/in X 2.65in/67mm Travel X 5.08in TLG] SLS
 803-04-202 033-22-021 Spring: 2019 [1.385in ID X 450lb/in X 2.65in/67mm Travel X 5.11in TLG] SLS
 803-04-203 033-22-022 Spring: 2019 [1.385in ID X 475lb/in X 2.65in/67mm Travel X 5.23in TLG] SLS
 803-04-204 033-22-023 Spring: 2019 [1.385in ID X 500lb/in X 2.65in/67mm Travel X 5.32in TLG] SLS
 803-04-205 033-22-024 Spring: 2019 [1.385in ID X 550lb/in X 2.65in/67mm Travel X 5.38in TLG] SLS
 803-04-206 033-22-025 Spring: 2019 [1.385in ID X 600lb/in X 2.65in/67mm Travel X 5.47in TLG] SLS
 803-04-207 033-22-026 Spring: 2019 [1.385in ID X 650lb/in X 2.65in/67mm Travel X 5.6in TLG] SLS
 803-04-208 033-22-027 Spring: 2019 [1.385in ID X 700lb/in X 2.65in/67mm Travel X 5.61in TLG] SLS
2.9in/74mm Travel Springs
 803-04-210 033-22-028 Spring: 2019 [1.385in ID X 300lb/in X 2.9in/74mm Travel X 5.36in TLG] SLS 8.75inx2.75in, 225mm(T)x70mm, 250mmx70mm
 803-04-211 033-22-029 Spring: 2019 [1.385in ID X 325lb/in X 2.9in/74mm Travel X 5.24in TLG] SLS
 803-04-212 033-22-030 Spring: 2019 [1.385in ID X 350lb/in X 2.9in/74mm Travel X 5.33in TLG] SLS
 803-04-213 033-22-031 Spring: 2019 [1.385in ID X 375lb/in X 2.9in/74mm Travel X 5.54in TLG] SLS
 803-04-214 033-22-032 Spring: 2019 [1.385in ID X 400lb/in X 2.9in/74mm Travel X 5.54in TLG] SLS
 803-04-215 033-22-033 Spring: 2019 [1.385in ID X 425lb/in X 2.9in/74mm Travel X 5.64in TLG] SLS
 803-04-216 033-22-034 Spring: 2019 [1.385in ID X 450lb/in X 2.9in/74mm Travel X 5.8in TLG] SLS
 803-04-217 033-22-035 Spring: 2019 [1.385in ID X 475lb/in X 2.9in/74mm Travel X 5.85in TLG] SLS
 803-04-218 033-22-036 Spring: 2019 [1.385in ID X 500lb/in X 2.9in/74mm Travel X 5.83in TLG] SLS
 803-04-219 033-22-037 Spring: 2019 [1.385in ID X 550lb/in X 2.9in/74mm Travel X 5.85in TLG] SLS
 803-04-220 033-22-038 Spring: 2019 [1.385in ID X 600lb/in X 2.9in/74mm Travel X 5.85in TLG] SLS
3.15in/80mm Travel Springs
 803-04-221 033-22-040 Spring: 2019 [1.385in ID X 225lb/in X 3.15in/80mm Travel X 5.39in TLG] SLS 9.50inx3.00in, 225mm(T)x72.5mm, 225mm(T)x75mm, 250mmx72.5mm, 250mmx75mm
 803-04-222 033-22-041 Spring: 2019 [1.385in ID X 250lb/in X 3.15in/80mm Travel X 5.54in TLG] SLS
 803-04-223 033-22-042 Spring: 2019 [1.385in ID X 275lb/in X 3.15in/80mm Travel X 5.46in TLG] SLS
 803-04-224 033-22-043 Spring: 2019 [1.385in ID X 300lb/in X 3.15in/80mm Travel X 5.61in TLG] SLS
 803-04-225 033-22-044 Spring: 2019 [1.385in ID X 325lb/in X 3.15in/80mm Travel X 5.7in TLG] SLS
 803-04-226 033-22-045 Spring: 2019 [1.385in ID X 350lb/in X 3.15in/80mm Travel X 5.94in TLG] SLS
 803-04-227 033-22-046 Spring: 2019 [1.385in ID X 375lb/in X 3.15in/80mm Travel X 5.92in TLG] SLS
 803-04-228 033-22-047 Spring: 2019 [1.385in ID X 400lb/in X 3.15in/80mm Travel X 6.04in TLG] SLS
 803-04-229 033-22-048 Spring: 2019 [1.385in ID X 425lb/in X 3.15in/80mm Travel X 6.16in TLG] SLS
 803-04-230 033-22-049 Spring: 2019 [1.385in ID X 450lb/in X 3.15in/80mm Travel X 6.28in TLG] SLS
 803-04-231 033-22-050 Spring: 2019 [1.385in ID X 475lb/in X 3.15in/80mm Travel X 6.41in TLG] SLS
 803-04-232 033-22-051 Spring: 2019 [1.385in ID X 500lb/in X 3.15in/80mm Travel X 6.33in TLG] SLS
 803-04-233 033-22-063 Spring: 2019 [1.385in ID X 525lb/in X 3.15in/80mm Travel X 6.60in TLG] SLS
 803-04-234 033-22-052 Spring: 2019 [1.385in ID X 550lb/in X 3.15in/80mm Travel X 6.52in TLG] SLS
 803-04-235 033-22-064 Spring: 2019 [1.385in ID X 575lb/in X 3.15in/80mm Travel X 6.60in TLG] SLS
3.65in/93mm Travel Springs
 803-04-236 033-22-053 Spring: 2019 [1.385in ID X 225lb/in X 3.65in/93mm Travel X 6.26in TLG] SLS 10.5inx3.5in
 803-04-237 033-22-054 Spring: 2019 [1.385in ID X 250lb/in X 3.65in/93mm Travel X 6.42in TLG] SLS
 803-04-238 033-22-055 Spring: 2019 [1.385in ID X 275lb/in X 3.65in/93mm Travel X 6.49in TLG] SLS
 803-04-239 033-22-056 Spring: 2019 [1.385in ID X 300lb/in X 3.65in/93mm Travel X 6.75in TLG] SLS
 803-04-240 033-22-057 Spring: 2019 [1.385in ID X 325lb/in X 3.65in/93mm Travel X 6.72in TLG] SLS
 803-04-241 033-22-058 Spring: 2019 [1.385in ID X 350lb/in X 3.65in/93mm Travel X 6.83in TLG] SLS
 803-04-242 033-22-059 Spring: 2019 [1.385in ID X 375lb/in X 3.65in/93mm Travel X 6.93in TLG] SLS
 803-04-243 033-22-060 Spring: 2019 [1.385in ID X 400lb/in X 3.65in/93mm Travel X 7.08in TLG] SLS
 803-04-244 033-22-061 Spring: 2019 [1.385in ID X 425lb/in X 3.65in/93mm Travel X 7.22in TLG] SLS
 803-04-245 033-22-062 Spring: 2019 [1.385in ID X 450lb/in X 3.65in/93mm Travel X 7.51in TLG] SL
